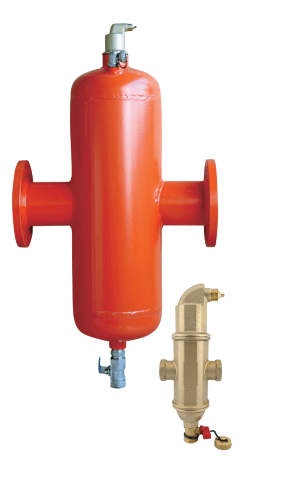

AIR &DIRT SEPARATOR

AIR & DIRT SEPARATOR Product Page

Removal of air and dirt in one device

Minimal pressure loss

Without downtime

AIR & DIRT SEPARATOR

APPLICATION

  • Liquid circulation system, such as water, water/glycol mixes, lubricating oil etc.

OPTIONAL MODELS

AVAILABLE CONNECTIONS AND SIZES

BSP 3/4" — 2"
NPT/Sweat 3/4" — 1 1/2"
Air and dirt free water system through a single device, keep the system clean and efficient operation

Without downtime, Dynamic drainage

Dirt can be flushed in a few seconds

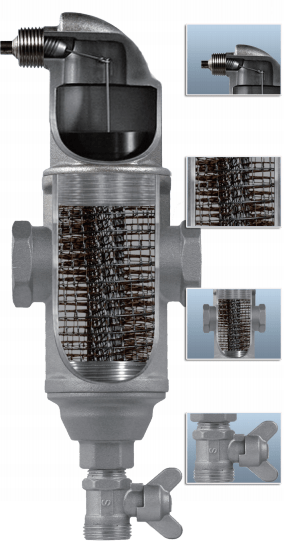

Air & Dirt Separator Introduction

AIR AND DIRT FREE SYSTEM WATER THROUGH A SINGLE DEVICE

The life and efficiency of a heating or cooling system are greatly dependent on the quality of the system water. Air and dirt problems cause frequent breakdowns and increased customer complaints. Corrosion, cavitation , and component wear are consequences of air-saturated, dirty system water. More and more problems and increased maintenance results in unnecessary costs.
Even to the dissolved micro bubbles and smallest particles in the system, Air & Dirt separator is a good solution to keep the system free from air and dirt permanently.

FEATURES

  • Protect system greatly,reduce the risk of system failure
  • Oxygen-based corrosion and pump cavitation reduced, Increased component life
  • Improved operation efficiency
  • Reduced maintenance costs
Demountable Air & Dirt Separator Install & Selection Guide

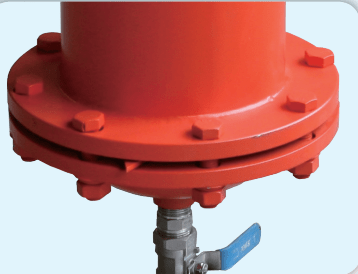

DEMOUNTABLE AIR & DIRT SEPARATOR

INSTALL THE DEVICE FOR OPTIMUM PERFORMANCE

Base on Henry’s Law, the dissolved gas in water is released from water as the temperature increases or the pressure decreases. For this reason, the device should be typically installed in the hottest point in the system. For a heating system, installation should be in the outlet pipe of the boiler; For cooling system, installation should be in the water return pipe. For dirt impurity removal, installation position is not the most important, so when installation the Air & Dirt separator, air separation effect should be firstly considered.

DESCRIPTION FOR SELECTION

  • Other products with different diameters of pipe can be supplied by our company(under DN750 usually). Please contact us for detail parameters.
  • Sizes from DN20 to DN50 are in brass or stainless steel, DN50 and above sizes are in carbon steel.
  • Please use high flow rate products when rate is faster than 1.5m/s.

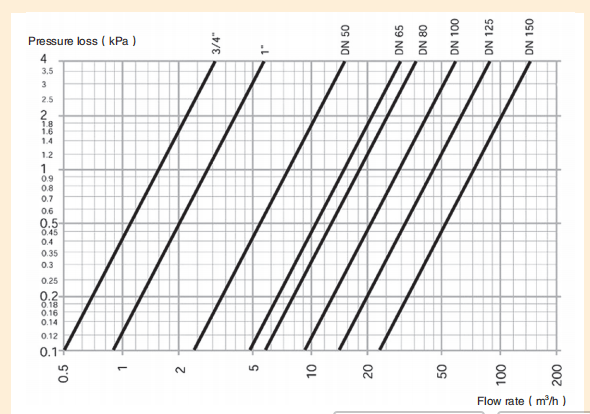

  • The pressure loss is less than 0.01MPa.
  • The maximum operating pressure of standard products is 1.0MPa, maximum testing pressure is 1.5MPa, maximum operating temperature is 110 ℃. We can also produce special customized high pressure and high temperature products to meet client requirement.
Air & Dirt Separator Models And Parameters

MODELS AND PARAMETERS

Model Size H(mm) h(mm) d(mm) D(mm) e(mm) L(mm) Flow rate (m³/h) Weight(kg)
YH-CAD-DN20 DN20 235 97 20 65 DN15 100 1.3 1.9
YH-CAD-DN22 DN22 235 97 20 65 DN15 110 1.3 1.9
YH-CAD-DN25 DN25 235 97 25 65 DN15 100 2.0 1.9
YH-CAD-DN28 DN28 235 97 25 65 DN15 110 2.0 1.9
YH-CAD-DN32 DN32 235 97 32 65 DN15 100 3.7 2.1
YH-CAD-DN40 DN40 235 105 40 65 DN15 100 5.0 2.2
YH-CAD-DN50M DN50 332 137 50 88 DN15 135 7.5 6.0
Model Size H(mm) h(mm) D(mm) e(mm) L(mm) Flow rate (m³/h) Weight(kg)
YH-CAD-DN50 DN50 630 270 160 DN25 350 12.5 22
YH-CAD-DN50H DN50 910 410 160 DN25 350 25 37
YH-CAD-DN65 DN65 630 270 160 DN25 350 20 25
YH-CAD-DN65H DN65 910 410 160 DN25 350 40 39
YH-CAD-DN80 DN80 790 350 220 DN25 470 27 58
YH-CAD-DN80H DN80 1150 530 220 DN25 470 55 68
YH-CAD-DN100 DN100 790 350 220 DN25 480 47 60
YH-CAD-DN100H DN100 1150 530 220 DN25 480 95 70
YH-CAD-DN125 DN125 1050 480 330 DN25 640 72 95
YH-CAD-DN125H DN125 1250 590 330 DN25 640 145 153
YH-CAD-DN150 DN150 1050 480 330 DN25 640 108 116
YH-CAD-DN150H DN150 1250 590 330 DN25 640 220 156
YH-CAD-DN200 DN200 1150 530 410 DN25 780 180 177
YH-CAD-DN200H DN200 1150 530 510 DN25 890 360 223
YH-CAD-DN250 DN250 1320 620 510 DN50 890 288 232
YH-CAD-DN250H DN250 1320 620 610 DN50 1010 575 315
YH-CAD-DN300 DN300 2050 990 610 DN50 1010 405 420
YH-CAD-DN300H DN300 2050 990 710 DN50 1200 810 526
