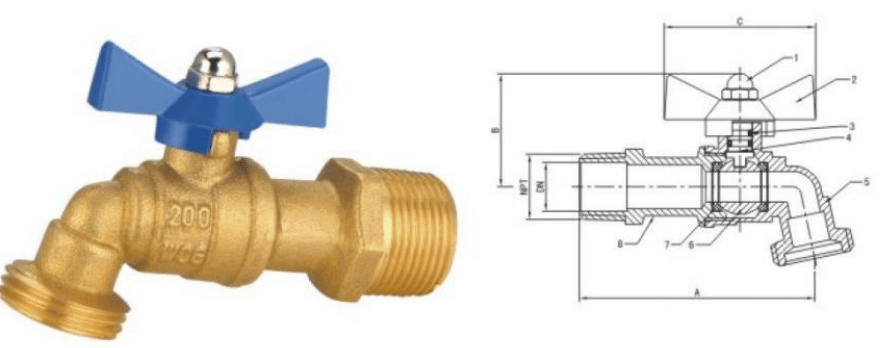

GE-153 Forged two-pipe body. 1/2 ” -3/4 ” (200WOG) Threaded comply With ANSI B1.20.1 Meet Mss sp-110 Specification
DIMENSIONS
| NPT | DN | A | B | C |
|---|---|---|---|---|
| 1/2″ | 16 | 77 | 37 | 52.5 |
| 3/4″ | 19.5 | 81 | 37 | 56.5 |
MATERIAL LIST
| NO. | Part | Specification |
|---|---|---|
| 1 | Cap nuts | Steel |
| 2 | Handle | Aluminum |
| 3 | O-ring | O-RING |
| 4 | Stem | NBR |
| 5 | Body | ASTM B124-C37700 |
| 6 | Ball | Brass ASTM 124-C37700 B16-C3600 With hard Chrome plating |
| 7 | Seat ring | Teflon®(PTFE) |
| 8 | Bonnet | ASTM B124-C37700 |

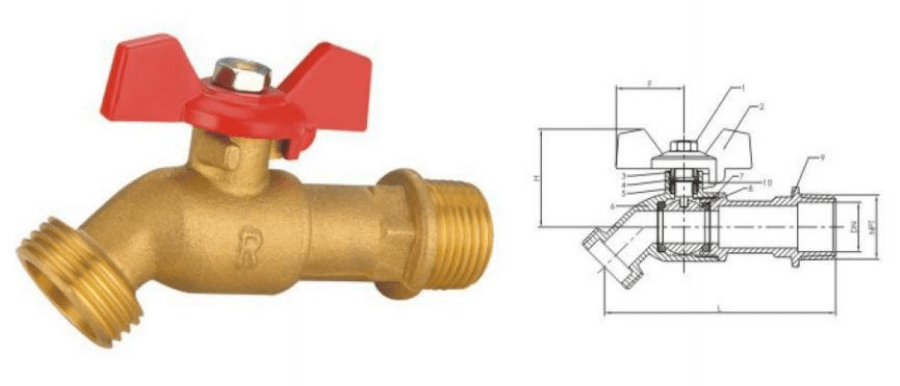

GE-413 Forged two-pipe body. 1/2 ” -3/4 ” (200WOG) Threaded comply With ANSI B1.20.1 Meet Mss sp-110 Specification
DIMENSIONS
| NPT | DN | A | B | C |
|---|---|---|---|---|
| 1/2″ | 16 | 77 | 37 | 52.5 |
| 3/4″ | 19.5 | 81 | 37 | 56.5 |
DIMENSIONS
| NPT | DN | L | H | F |
|---|---|---|---|---|
| 1/2″ | 16 | 83 | 39.5 | 27.5 |
| 3/4″ | 20 | 93 | 41.5 | 27.5 |
MATERIAL LIST
| NO. | Part | Specification |
|---|---|---|
| 1 | Nut | Steel |
| 2 | Handle | Aluminum |
| 3 | Gland nut | ASTM B124-C37700 |
| 4 | Stem | ASTM B124-C37700 |
| 5 | Stempacking | Teflon®(PTFE) |
| 6 | Body | Teflon®(PTFE) |
| 7 | Seat ring | Teflon®(PTFE) |
| 8 | Ball | Brass ASTM 124-C37700 B16-C3600 With hard Chrome plating |
| 9 | Bonnet | ASTM B124-C37700 |
| 10 | Gasket | ASTM B124-C37700 |
