Electric Three-Way Ball Valve
Product Introduction
HDQ series electric ball valves are suitable for on-off control of air conditioning fan coil systems and central heating systems. It consists of a ball valve body and an actuator, and the actuator drives the valve core to rotate 90°.
The actuator is driven by a synchronous motor with built-in limit contacts, which can cut off power supply when the valve is fully open or fully closed, ensuring stable operation. HDQ series electric ball valves are widely applied in central heating systems, time proportioning control systems, central air conditioning pipeline systems, solar energy systems and other systems.
Technical Parameters
TECHNICAL PARAMETER
- Operating Voltage: AC220V, AC110V, AC24V, DC5V, DC12V, DC24V
- Control Modes: 3-wire dual control, 3-wire single control (Normally Open / Normally Closed), 2-wire spring reset, reverse positive and negative wiring
- Actuator Torque: 6N·m
- Power Consumption: 6VA (only during valve opening and closing)
- Nominal Pressure of Valve Body: 1.6MPa
- Max Shut-off Pressure Difference: ≤0.4MPa
- Applicable Medium: Cold water, hot water or 50% ethylene glycol solution
- Opening & Closing Time: 6–15 seconds
- Applicable Medium Temperature: 0–90°C
- Operating Ambient Temperature: 0–60°C
- Connection Mode: ZG internal thread (custom threads available upon customer request)
MODEL LIST
| Model No. | Valve Type | Nominal Diameter (mm) | Connection Thread | Nominal Pressure (MPa) | L (mm) | H1 (mm) | H2 (mm) | H3 (mm) | W (mm) | Ball Diameter (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HDQ-315 | Electric Three-Way Ball Valve | DN15 | 1/2″ | 1.6 | 51 | 121 | 118 | 23.6 | 29 | 12 | 530 |
| HDQ-320 | Electric Three-Way Ball Valve | DN20 | 3/4″ | 1.6 | 58 | 129 | 126 | 27.5 | 36 | 17 | 665 |
| HDQ-325 | Electric Three-Way Ball Valve | DN25 | 1″ | 1.6 | 67 | 138 | 135 | 29.5 | 40 | 19 | 805 |
| HDQ-332 | Electric Three-Way Ball Valve | DN32 | 1-1/4″ | 1.6 | 75 | 142 | 139 | 36 | 49 | 27 | 1305 |
| HDQ-340 | Electric Three-Way Ball Valve | DN40 | 1-1/2″ | 1.6 | 83 | 153 | 150 | 40 | 60 | 30 | 2270 |

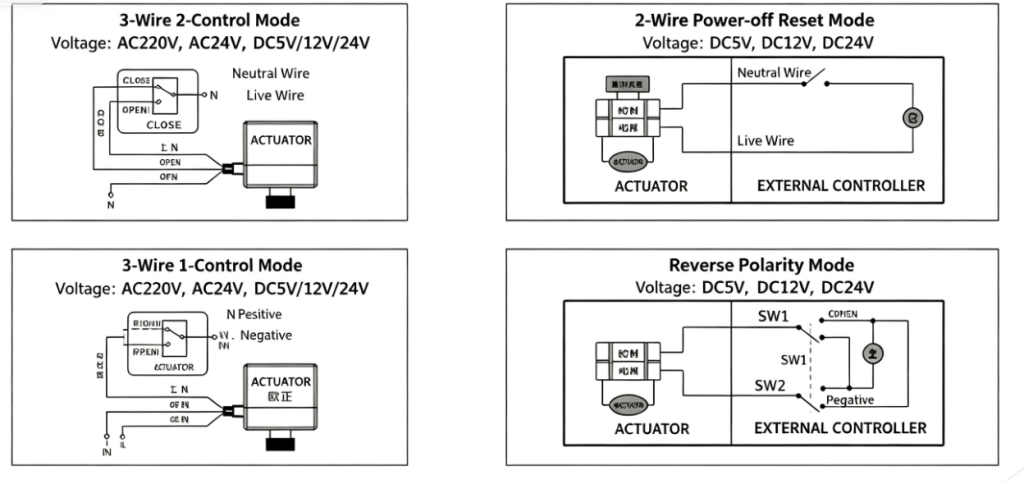

CONNECTION MODE
The HDQ series electric ball valve is suitable for on/off control in air conditioning fan coil units and central heating systems. It consists of a ball valve and an actuator. The actuator drives the valve core to rotate 90°. The actuator is driven by a synchronous motor and features built-in limit switches that cut off power when the valve is fully open or fully closed, ensuring stable operation. The HDQ series electric ball valve is widely used in central heating systems, time-area based heating control systems, central air conditioning coil systems, solar systems, and more.
TECHNICAL PARAMETER >>
- Drive voltage: AC220V
- Frequency: 50/60Hz
- Protection rating: IP54
- Control mode: Power-off close (open)
- Drive torque: 6 N·m
- Power consumption: 6 VA (only during valve opening/closing)
- Valve body pressure rating: 1.6 MPa
- Shut-off differential pressure: ≤0.4 MPa
- Applicable media: cold water, hot water, or 50% ethylene glycol solution
- Opening/closing time: 6–15 seconds
- Applicable media temperature: 0–90°C
- Applicable ambient temperature: 0–60°C
- Connection: ZG internal pipe thread (customization available upon request)
MODEL LIST >>
| Model | Valve Type | DN (mm) | Connection Thread | Pressure Rating (MPa) | H1 (mm) | H2 (mm) | L (mm) | Ball Diameter (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| HDQ-215 | Electric two-way valve | DN15 | 1/2″ | 1.6 | 121 | 23.6 | 51 | 12 | 470 |
| HDQ-220 | Electric two-way valve | DN20 | 3/4″ | 1.6 | 129 | 27.5 | 58 | 17 | 535 |
| HDQ-225 | Electric two-way valve | DN25 | 1″ | 1.6 | 138 | 29.5 | 67 | 19 | 585 |
| HDQ-232 | Electric two-way valve | DN32 | 1-1/4″ | 1.6 | 142 | 36 | 75 | 27 | 810 |
| HDQ-240 | Electric two-way valve | DN40 | 1-1/2″ | 1.6 | 153 | 40 | 83 | 30 | 965 |
| HDQ-250 | Electric two-way valve | DN50 | 2″ | 1.6 | 173 | 46 | 96 | 38 | 1340 |
2-wire power-off close (open):
- When SW is closed, the valve opens/closes; after reaching the position, the internal power supply is automatically cut off, and the valve remains in the open/closed state. The backup power supply is charged.
- When SW is powered off, the valve closes/opens; after reaching the position, the internal power supply is automatically cut off, and the valve remains in the closed/open state.
- Note: The power-on time should not be less than 1 minute.
The HDQ series electric ball valve is suitable for on/off control in air conditioning fan coil units and central heating systems. It consists of a ball valve and an actuator. The actuator drives the valve core to rotate 90°. The actuator is driven by a synchronous motor and features built-in limit switches that cut off power when the valve is fully open or fully closed, ensuring stable operation. The HDQ series electric ball valve is widely used in central heating systems, time-area based heating control systems, central air conditioning coil systems, solar systems, and more.
Technical Parameters
- Drive voltage: AC220V, AC110V, AC24V / DC5V, DC12V, DC24V
- Control mode: 3-wire 2-control, 3-wire 1-control (normally open / normally closed), 2-wire power-off return, reverse polarity
- Drive torque: 6 N·m
- Power consumption: 6 VA (only during valve opening/closing)
- Valve body pressure rating: 1.6 MPa
- Shut-off differential pressure: ≤0.4 MPa
- Applicable media: cold water, hot water, or 50% ethylene glycol solution
- Opening/closing time: 6–15 seconds
- Applicable media temperature: 0–90°C
- Applicable ambient temperature: 0–60°C
- Connection: ZG internal pipe thread (customization available upon request)
| Model | Valve Type | Nominal Diameter (mm) | Connection Thread | Pressure Rating (MPa) | L (mm) | H1 (mm) | H2 (mm) | H3 (mm) | Ball Diameter (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| HDQ-215 | Electric two-way valve | DN15 | 1/2″ | 1.6 | 51 | 121 | 118 | 23.6 | 12 | 470 |
| HDQ-220 | Electric two-way valve | DN20 | 3/4″ | 1.6 | 58 | 129 | 126 | 27.5 | 17 | 535 |
| HDQ-225 | Electric two-way valve | DN25 | 1″ | 1.6 | 67 | 138 | 135 | 29.5 | 19 | 585 |
| HDQ-232 | Electric two-way valve | DN32 | 1-1/4″ | 1.6 | 75 | 142 | 139 | 36 | 27 | 810 |
| HDQ-240 | Electric two-way valve | DN40 | 1-1/2″ | 1.6 | 83 | 153 | 150 | 40 | 30 | 965 |
| HDQ-250 | Electric two-way valve | DN50 | 2″ | 1.6 | 9 |
Connection Modes
