Brass spring check valve
w/brass stem
Size 1/2″ 3/4″ 1″ 1-1/4″ 1-1/2″ 2″
2-1/2″ 3″ 4″

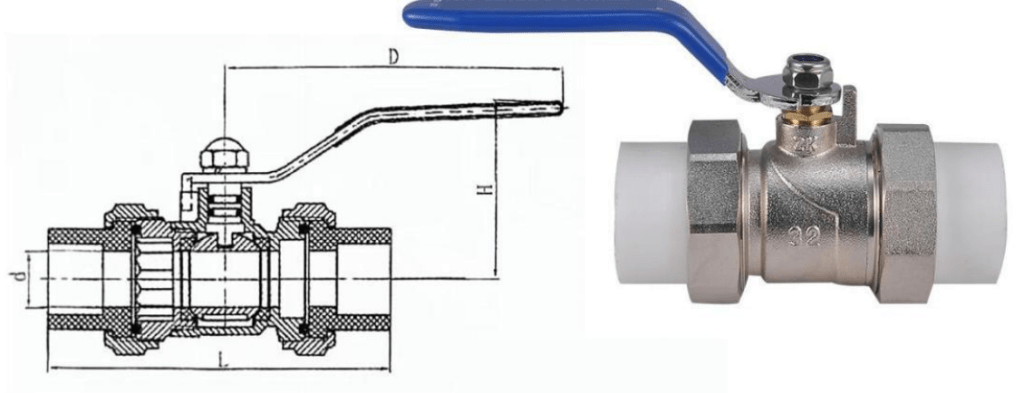

DIMENSIONS
| DN | L | H | D | d |
|---|---|---|---|---|
| 20 | 91.5 | 48 | 92 | 15 |
| 25 | 102 | 59 | 102 | 20 |
| 32 | 107 | 64.5 | 112 | 25 |
| 40 | 130 | 76.5 | 140 | 29.5 |
| 50 | 148 | 83 | 140 | 38.5 |
| 63 | 167 | 95 | 160 | 48.5 |
(2000WOG-A) 2PC Type Ball Valve With Internal Thread Q11 F-(16-130) C、P、R
Specifications
Nominal pressure: PN1.6,2.5,4.0、6.4MPa
Strength testing pressure: PT2.4,3.8.6.0,9.6MPaSeat testing pressure (low pressure): 0.6MPaApplicable media:
Q11F-(16-64)C Water.Oil.GasApplicable temperature: -29~180℃Q11F-(16-64)P Nitric acid
Q11F-(16-64)R Acetic acid
Materials of main parts
| Material Name | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R |
|---|---|---|---|
| Body | WCB | ZG1Cr18Ni9TiCF8 | ZG1Cr18Ni12Mo2TiCF8M |
| Bonnet | WCB | ZG1Cr18Ni9TiCF8 | ZG1Cr18Ni12Mo2TiCF8M |
| Ball | 1Cr18Ni9Ti304 | ZG1Cr18Ni9Ti304 | 1Cr18Ni12Mo2Ti316 |
| Stem | 1Cr18Ni9Ti304 | ZG1Cr18Ni9Ti304 | 1Cr18Ni12Mo2Ti316 |
| Sealring | Polytetrafluorethylene(PTFE) | Polytetrafluorethylene(PTFE) | Polytetrafluorethylene(PTFE) |
| Gland Packing | Polytetrafluorethylene(PTFE) | Polytetrafluorethylene(PTFE) | Polytetrafluorethylene(PTFE) |
Main outer size
| DN | G | d | L | E | H | W |
|---|---|---|---|---|---|---|
| 8 | 1/4″ | 10 | 55 | 11.5 | 50 | 90 |
| 10 | 3/8″ | 12 | 55 | 11.5 | 50 | 90 |
| 15 | 1/2″ | 15 | 63 | 14 | 58 | 90 |
| 20 | 3/4″ | 20 | 73 | 15 | 62 | 110 |
| 25 | 1″ | 25 | 84 | 15 | 72 | 120 |
| 32 | 1 1/4″ | 32 | 98 | 18 | 80 | 130 |
| 40 | 1 1/2″ | 38 | 106 | 19 | 90 | 150 |
| 50 | 2″ | 50 | 121 | 19 | 98 | 170 |
| 65 | 2 1/2″ | |||||
| 80 | 3″ | |||||
