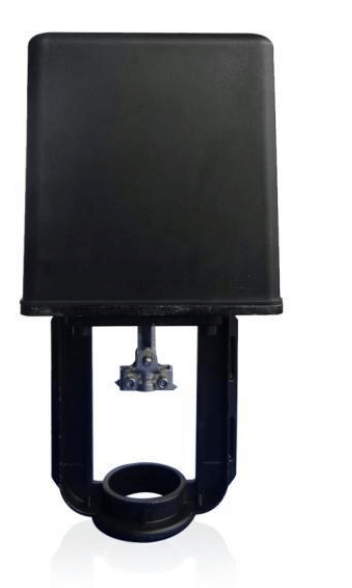

VA-7000 Linear Valve Actuator
Product Introduction
VA-7000 series drivers can provide floating point control and proportional integral control to adjust the flow of media, and are widely used in heating, ventilation, air conditioning and building automation systems. Adopting intelligent chip control, they can adapt to the valve stroke with low noise. The die-cast aluminum alloy bracket is lightweight and easy to transport and install. A bidirectional synchronous motor is used; when reaching the limit position, the spring displacement pushes the limit switch to cut off the motor power, so as to protect the motor, with high control accuracy and fast response speed.
Technical Parameters
- Low AC voltage bidirectional synchronous motor
- With learning function, automatically memorizes stroke parameters
- Accepts DC0-10V, DC2-10V or DC0-20mA, DC4-20mA control signal input for proportional control; provides DC0-10V feedback signal output to feed back the opening or closing position of the valve
- Fast working state conversion, convenient and quick for installation and debugging
- With manual open and close function (limited to VA7XXX-S type)
Model List
| Item | VA7100-400 | VA7100-400S | VA7200-400 | VA7200-400S |
|---|---|---|---|---|
| Electrical Parameters | 220VAC, 24VAC, 50/60Hz, 5.5VA | 24VAC, 50/60Hz, 5.5VA | ||
| Control Signal | Floating point control | 0-10VDC, 2-10VDC, 0-20mADC or 4-20mA | ||
| Feedback Signal | 0-10VDC | |||
| Motor Circuit Power | 1VA | |||
| Operation/Control | Proportional control, forward or reverse rotation | |||
| Torque | 4000N | 4000N | ||
| Main Parts & Materials | Bracket: Die-cast aluminum alloy | |||
| Running Time | 50Hz: 4.6s/mm | 50Hz: 7.77s/mm | ||
| Temperature | Operation: 2-55℃; Storage: -20-65℃ | |||
| Humidity | ＜90% non-condensing | |||
| Connecting Wire | 0.5-1mm | |||
| Preset Value | Input signal: 0-10VDC; Working status: DA | |||
| Maximum Stroke | 42mm |

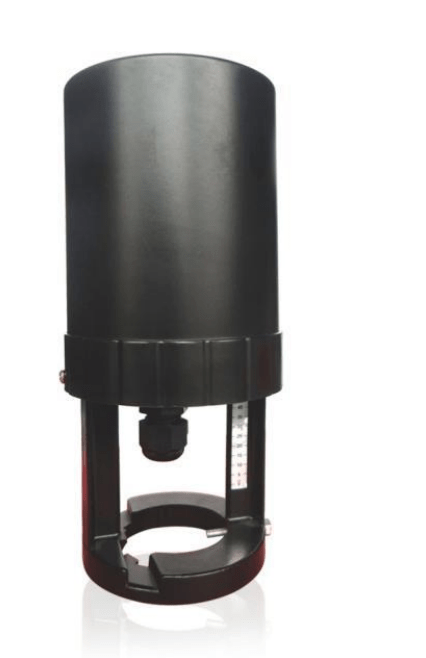

VA-3000 Linear Valve Actuator
Product Introduction
VA-3000 series drivers can provide floating point control and proportional control to adjust the flow of media. They are widely used in heating, ventilation, air conditioning and building automation systems. Adopting intelligent chip control, they can adapt to the valve stroke with low noise. The die-cast aluminum alloy bracket is lightweight and easy to transport and install. The bidirectional synchronous motor is used; when reaching the limit position, the spring displacement pushes the limit switch to cut off the motor power, so as to protect the motor, with high control accuracy and fast response speed.
Technical Parameter
- Low AC Voltage Bidirectional Synchronous Motor
- With learning function, automatically memorizes stroke parameters
- Accepts DC0-10V, DC2-10V or DC0-20mA, DC4-20mA control signal input for proportional control
- Provides DC0-10V feedback signal output to feed back the opening or closing position of the valve
- Built-in self-compensating spring, the motor will be powered off after the valve is in place for protection
- With manual open and close function (limited to VA3XXX-S type)
Model List
Item VA3100-120 VA3100-120S VA3200-120 VA3200-120S Electrical Parameters 220VAC, 24VAC, 50/60Hz, 5.5VA 24VAC, 50/60Hz, 5.5VA Control Signal Floating point control 0-10VDC, 2-10VDC, 0-20mADC or 4-20mA Feedback Signal 0-10VDC Motor Circuit Power 1VA Operation/Control Proportional control, forward/reverse rotation Torque 1200N 1200N Main Parts & Materials Bracket: Die-cast aluminum
Transmission gear: Metal gear
Transmission shaft: Stainless steel
Telescopic rod: Copper alloy
Shell: Flame-retardant ABS engineering plastic
Reducer clamp plate: Galvanized steel plate
Running Time 50Hz: 4.6s/mm
60Hz: 3.8s/mm
50Hz: 7.77s/mm
60Hz: 6.45s/mm
Temperature Operation: 2-55℃; Storage: -20-65℃ Humidity ＜90% non-condensing Connecting Wire 0.5-1mm Preset Value Input signal: 0-10VDC; Working status: DA Maximum Stroke 25mm
