DIRT SEPARATOR

Dirt Separator Product Page

DIRT SEPARATOR

APPLICATION

  • Liquid circulation system, such as water, water/glycol mixes, lubricating oil etc.

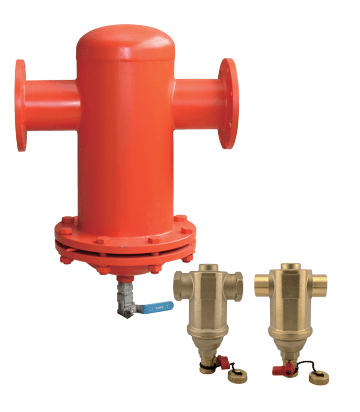

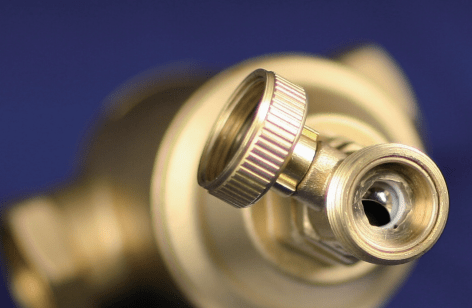

OPTIONAL MODELS

AVAILABLE CONNECTIONS AND SIZES

BSP 3/4" — 2"
NPT/Sweat 3/4" — 1 1/2"
Keep clean water be always with your system.
New magnetic dirt separator with demountable magnet ring, relying on the strong magnetic force, the intercepting effect is more strengthened especially to magnetic metal particles.

Efficient removal of magnetic and nonmagnetic tiny dirt particles.
Dirt Separator Introduction Page

SYSCA DIRT SEPARATOR CAN HELP YOU,WHETHER YOU ARE ENGINEERING TECHNICAL PERSONNEL OR THE END USER

The life and efficiency of a heating or cooling system are greatly dependent on the quality of system water. Dirt can cause many problems such as increased component wear and frequent break down. Corrosion, pump wear and reduced efficiency result in increased maintenance, unnecessary costs and dissatisfied owners. Traditionally filters are able to overcome dirt problems, but require frequent maintenance and if not cleaned on a regular bases cause increased pressure drops and eventually blockage.

FEATURES

  • Dirt can be flushed while system is operating.
  • All dirt can be removed in one central location in the plant room virtually with no maintenance and no replacement filters.
  • No by-pass or isolating valves required with minor pressure drop, always constant without blocking the flow.
  • In addition to conventional dirt it also removes dirt particles of minimal size to micron.
Dirt Separator Installation & Selection Guide

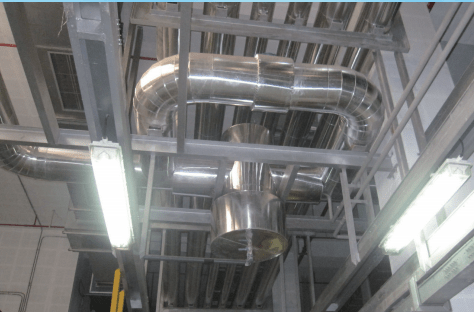

INSTALLATION OF THE DEVICE FOR OPTIMUM PERFORMANCE

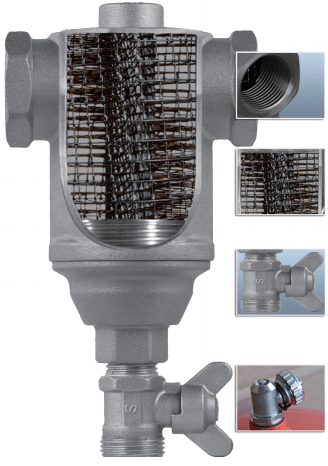

The unique construction makes the dirt separator quick and easy dirt removal while system is operating. This offers time saving over traditional filters which need to be taken apart for cleaning. All this is not required with our device, the system can remain operating and no replacement parts are required. The honeycomb mesh, which is the core of the Dirt separators, ensures that all particles sink to the bottom of the dirt collector. The device works continuously and will be not affected by the trapped dirt. Unlike traditional filters, the pressure loss through the dirt separator remains very small.

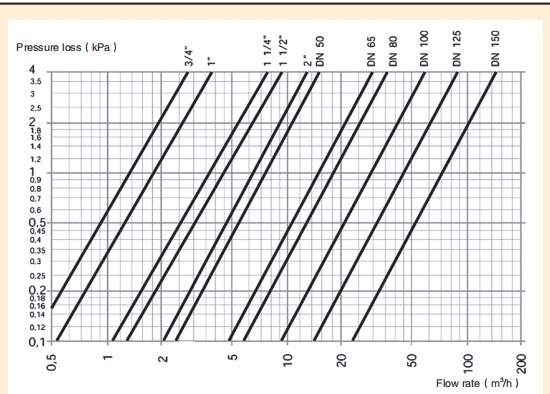

DESCRIPTION FOR SELECTION

  • Other products with different diameters of pipe can be supplied by our company(under DN750 usually). Please contact us for detail parameters.
  • Sizes from DN20 to DN65 are in brass or stainless steel, DN50 and above sizes are in carbon steel.
  • Please use high flow rate products when rate is faster than 1.5m/s.
  • The pressure loss is less than 0.01MPa.
  • The maximum operating pressure of standard products is 1.0MPa, maximum testing pressure is 1.5MPa, maximum operating temperature is 110 ℃. We can also produce special customized high pressure and high temperature products to meet client’s requirement.
Dirt Separator Models And Parameters

MODELS AND PARAMETERS

Model Size H(mm) h(mm) d(mm) D(mm) e(mm) L(mm) Flow rate (m³/h) Weight(kg)
YH-CD-DN20 DN20 126 106 20 65 DN15 100 1.3 1.1
YH-CD-DN22 DN22 126 106 20 65 DN15 100 1.3 1.2
YH-CD-DN25 DN25 132 109 25 65 DN15 100 2.0 1.3
YH-CD-DN28 DN28 132 109 25 65 DN15 100 2.0 1.4
YH-CD-DN32 DN32 147 122 32 65 DN15 100 3.7 1.5
YH-CD-DN40 DN40 189 156 40 65 DN15 100 5.0 1.8
YH-CD-DN50M DN50 246 196 50 88 DN15 135 7.5 4.0
YH-CD-DN20R DN20 180 - 20 65 DN15 100 1.3 2.0
YH-CD-DN22R DN22 180 - 20 65 DN15 100 1.3 2.0
YH-CD-DN25R DN25 180 - 25 65 DN15 100 2.0 2.0
YH-CD-DN28R DN28 180 - 25 65 DN15 100 2.0 2.0
Model Size H(mm) h(mm) D(mm) e(mm) L(mm) Flow rate (m³/h) Weight(kg)
YH-CD-DN50 DN50 440 270 160 DN25 350 12.5 24
YH-CD-DN50H DN50 440 250 220 DN25 470 25 33
YH-CD-DN65 DN65 440 260 160 DN25 350 20 27
YH-CD-DN65H DN65 440 240 220 DN25 470 40 29
YH-CD-DN80 DN80 570 350 220 DN25 470 27 39
YH-CD-DN80H DN80 570 320 330 DN25 640 55 57
YH-CD-DN100 DN100 570 340 220 DN25 480 47 45
YH-CD-DN100H DN100 570 310 330 DN25 640 95 61
YH-CD-DN125 DN125 760 460 330 DN25 640 72 75
YH-CD-DN125H DN125 760 430 410 DN25 780 145 97
YH-CD-DN150 DN150 760 440 330 DN25 640 108 80
YH-CD-DN150H DN150 760 420 410 DN25 780 220 114
YH-CD-DN200 DN200 910 540 410 DN25 780 180 121
YH-CD-DN200H DN200 910 530 510 DN25 890 360 189
YH-CD-DN250 DN250 1150 690 510 DN50 890 288 230
YH-CD-DN250H DN250 1150 670 610 DN50 1010 575 300
YH-CD-DN300 DN300 1510 1000 610 DN50 1010 405 370
YH-CD-DN300H DN300 1510 980 710 DN50 1200 810 390
