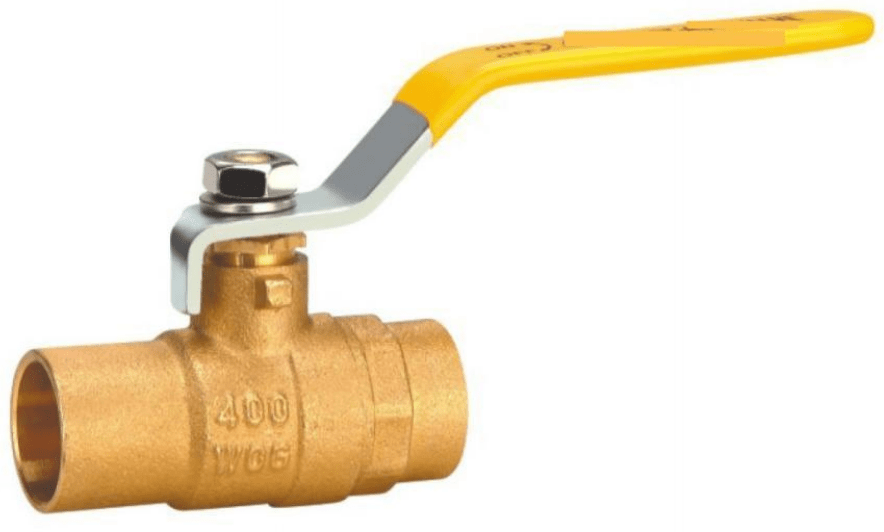

GE-120S
Forged two-pipe body.STD Port
1/2 ” -4 ” （400WOG,100WSP)
Solder Ends comply With ANSI B16. 18
Meet Mss sp-110 Specification

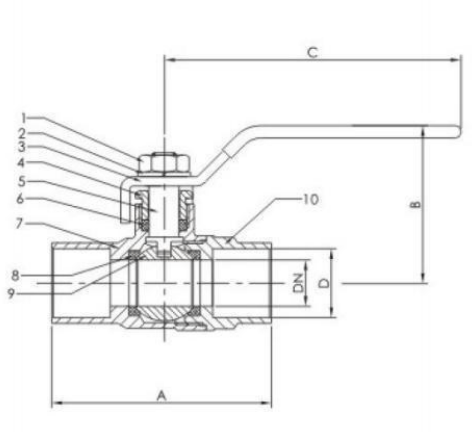

MATERIAL LIST
| NO. | PART | SPECIFICATION |
|---|---|---|
| 1 | Nut | Steel |
| 2 | Lock washer | Steel with chrome or zinc Alloy |
| 3 | Handle | Steel with chrome or zinc Alloy |
| 4 | Gland nut | ASTM B124-C37700 |
| 5 | Stem | ASTM B124-C37700 |
| 6 | Stempacking | Teflon®(PTFE) |
| 7 | Body | ASTM B124-C37700 |
| 8 | Seatring | Teflon®(PTFE) |
| 9 | Ball | Brass ASTM 124-C37700B16-C3600 With hard Chrome plating |
| 10 | Bonner | ASTM B124-C37700 |
DIMENSIONS
| NPT | DN | A | B | C |
|---|---|---|---|---|
| 1/2″ | 12 | 56.5 | 45.5 | 88 |
| 3/4″ | 15 | 70.5 | 50.5 | 110 |
| 1″ | 19 | 82.5 | 53.5 | 110 |
| 1 1/4″ | 25 | 103.5 | 66.5 | 140 |
| 1 1/2″ | 32 | 112 | 70.5 | 140 |
| 2″ | 40 | 134 | 76 | 140 |
| 2 1/2″ | 50 | 143 | 96 | 201 |
| 3″ | 60 | 166 | 112 | 251 |
| 4″ | 80 | 208 | 129 | 251 |

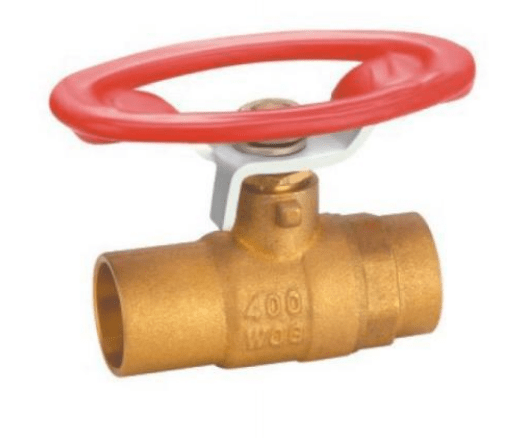

GE-120S-TY
Forged two-pipe body.STD Port
1/2 ” -4 ” （400WOG,100WSP)
Solder Ends comply With ANSI B16. 18
Meet Mss sp-110 Specification
